General specifications

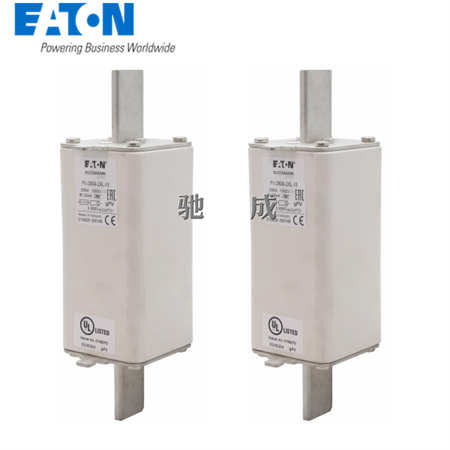

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-250A-2XL-15

UPC:  051712372084

EAN:  5996516000601

Product Length/Depth:  217 mm

Product Height:  82 mm

Product Width:  94 mm

Product Weight:  1423 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  250 A

Voltage rating:  1500 Vdc

Watt losses:  72 W

Breaking capacity:  30 kA

Class:  Class gPV

Physical details

Fuse type:  PV-2XL

Fuse size:  2XL

Fitted with::  Blade with top indicator

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD2XL-S-PV XL Fuse base
