General specifications

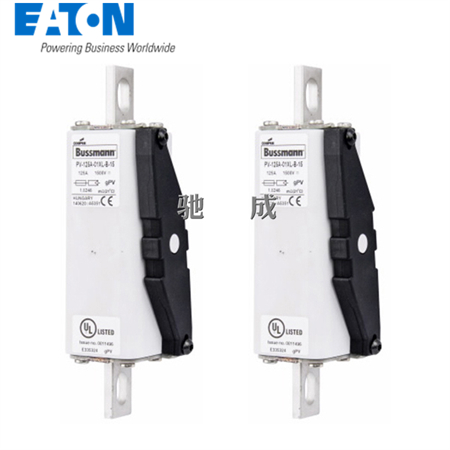

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-125A-01XL-B-15

UPC:  051712374033

EAN:  5996516000953

Product Length/Depth:  .001 mm

Product Height:  .001 mm

Product Width:  .001 mm

Product Weight:  395.3 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  125 A

Voltage rating:  1500 Vdc

Watt losses:  48 W

Breaking capacity:  30 kA

Class:  Class gPV

Physical details

Fuse type:  PV-01XL-B-15

Fuse size:  01XL

Fitted with::  Side indicator

Material:  Ceramic body
