General specifications

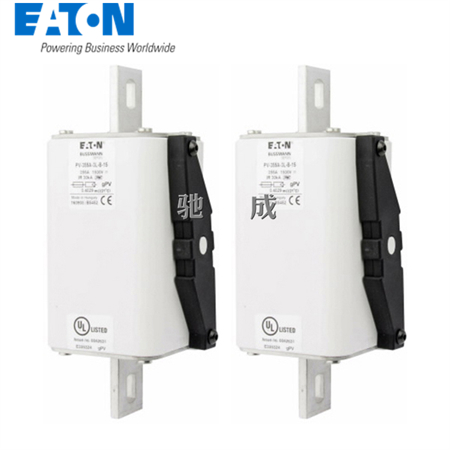

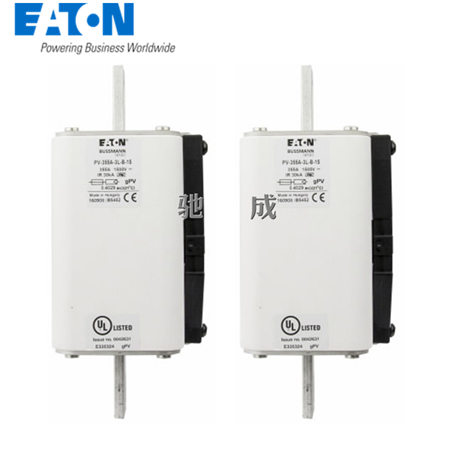

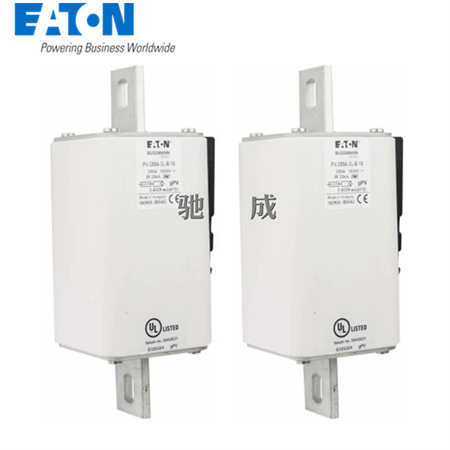

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-355A-3L-B-15

UPC:  051712374569

EAN:  5996516001462

Product Length/Depth:  91 mm

Product Height:  91 mm

Product Width:  201.4 mm

Product Weight:  1614 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  355 A

Voltage rating:  1500 Vdc

Watt losses:  59 W

Breaking capacity:  100 kA

Class:  Class gPV

Physical details

Fuse type:  PV-3L-B-15

Fuse size:  3L

Fitted with::  Side indicator

Material:  Ceramic body
