General specifications

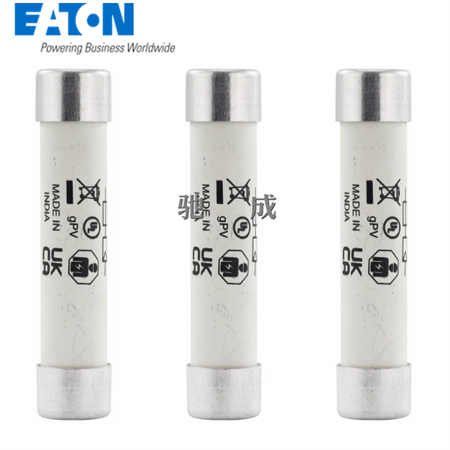

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-15A14LF

UPC:  051712377232

EAN:  5027590505529

Product Length/Depth:  65 mm

Product Height:  14 mm

Product Width:  14 mm

Product Weight:  12 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  15 A

Voltage rating:  1000 Vdc

Watt losses:  5.8 W

Breaking capacity:  10 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A14LF

Fuse size:  14x65 mm

Material:  Ceramic body
