General specifications

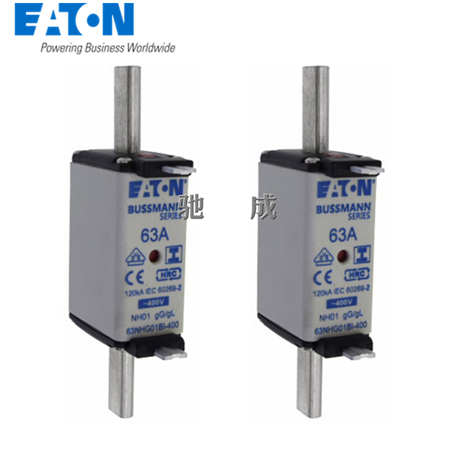

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  63NHG01BI-400

UPC:  051712233446

EAN:  5027590485494

Product Length/Depth:  135 mm

Product Height:  58 mm

Product Width:  30 mm

Product Weight:  294.6666667 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Insulated metal gripping lugs (IMGL):  Yes

Suitable for:  Microswitch 170H0235

Amperage Rating:  63 A

Frequency rating - max:  62 Hz

Fitted with::  Insulated metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH01

Voltage rating:  400 V

Fuse indicator:  Combination fuse status indicator

Construction:  NH01

Construction size:  NH01

Rated voltage AC:  400 V

Quantity:  3

Material:  Ceramic body

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  5.6 W

Type:  fuse

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC

Packaging type:  Standard
