General specifications

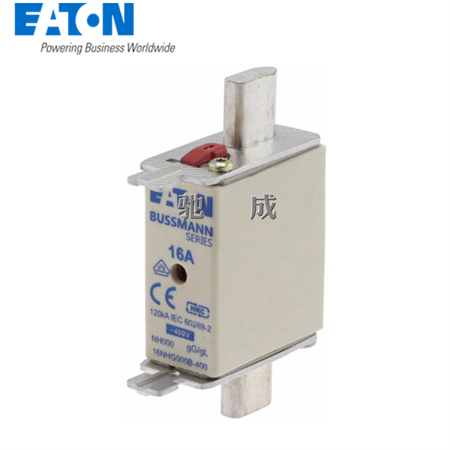

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  16NHG000B-400

EAN:  5027590437707

Product Length/Depth:  79 mm

Product Height:  51 mm

Product Width:  21 mm

Product Weight:  130.6666667 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH000

Construction size:  NH000

Rated voltage AC:  400 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  16 A

Frequency rating - max:  62 Hz

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  2.3 W

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Knife blade contacts
Square body

Breaking capacity:  120 kA

Fuse size:  NH000

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Voltage rating:  400 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
