General specifications

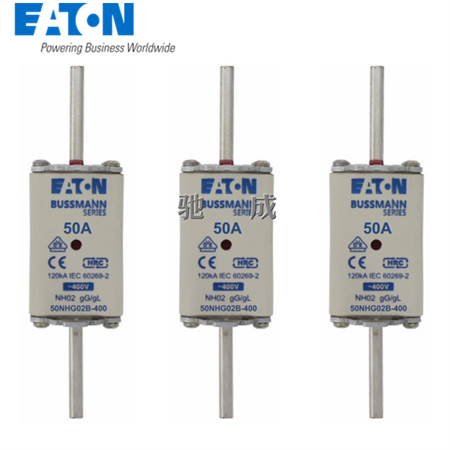

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  50NHG02B-400

EAN:  5027590483353

Product Length/Depth:  150 mm

Product Height:  63 mm

Product Width:  40 mm

Product Weight:  426.6666667 g

Compliances:  CE
RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH02

Construction size:  NH02

Accessory/spare part type:  SDL-00 Solid link
FEH- Fuse extraction handle
TD00-IP20 IP protection kit
TD00-IP20I Integral protection kit
TD00-IP20IC Integral Triple pole protection kit including fuse covers

Rated voltage AC:  400 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  50 A

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  6.5 W

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH00

Class:  Class gG/gL

Voltage rating:  400 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
