General specifications

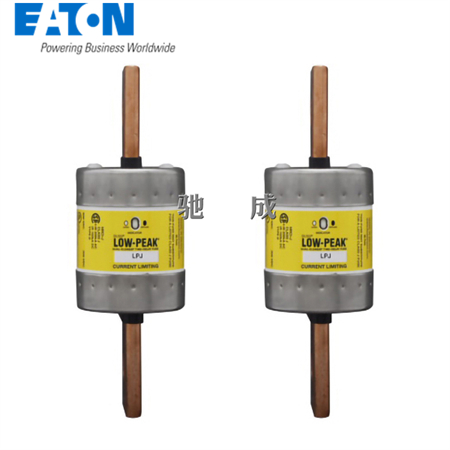

Product Name:  Eaton Bussmann series LPJ fuse

Catalog Number:  LPJ-450SPI

UPC:  051712626460

Product Length/Depth:  2.5 in

Product Height:  8 in

Product Width:  .81 in

Product Weight:  2.603 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Electrical rating

Amperage Rating:  450 A

Interrupt rating:  100 kAIC Vdc
300 kAIC at 600 Vac

Response time:  10 sec at 500%

Voltage rating:  600 Vac, 300 Vdc

Physical details

Fuse type:  Time delay
Current-limiting

Number of elements:  Dual

Packaging type:  Standard

General information

Class:  Class J

Connection:  Bolted blade end x bolted blade end

Fuse indicator:  Non-indicating
With Indicator

Special features:  Non-indicating, High in-rush current motor protection
