General specifications

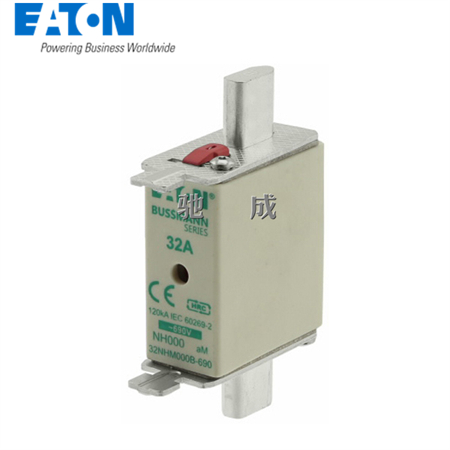

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  32NHM000B-690

UPC:  051712494595

EAN:  5027590476959

Product Length/Depth:  79 mm

Product Height:  51 mm

Product Width:  21 mm

Product Weight:  119.33333333 g

Warranty:  No warranty

Compliances:  RoHS Compliant

Certifications:  Not Applicable

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH000

Construction size:  NH000

Rated voltage AC:  690 V

Insulated metal gripping lugs (IMGL):  No

Amperage Rating:  32 A

Utilization category:  aM (switchgear protection)

Watt losses:  2.1 W

Type:  fuse

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Class:  Class aM

Voltage rating:  690 V

Application:  industrial

Voltage type:  AC
