General specifications

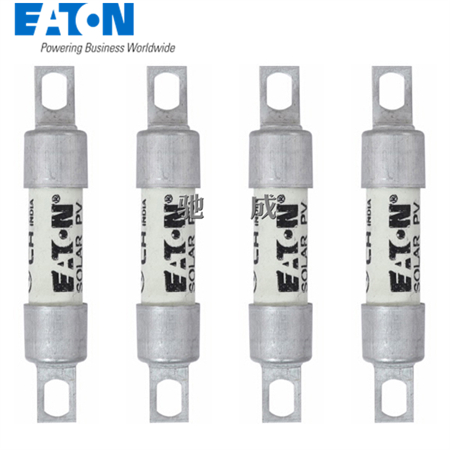

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-15A10-T

UPC:  051712204071

EAN:  5027590505475

Product Length/Depth:  62 mm

Product Height:  25 mm

Product Width:  52 mm

Product Weight:  11.9 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC Rated
UL Listed
CSA Certified
CCC

Electrical rating

Amperage Rating:  15 A

Voltage rating:  1000 V

Watt losses:  2.9 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10-T

Fuse size:  10 x 38 mm

Fitted with::  Bolt fixing

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
